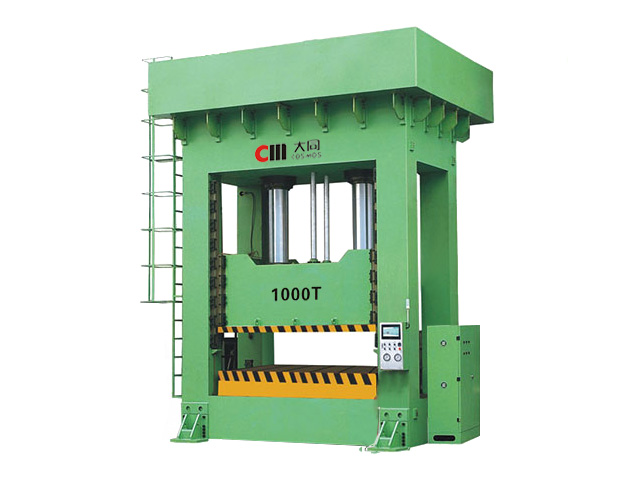

Precision Monitoring: Uses a grating ruler and pressure sensor for position and pressure monitoring, improving pressing accuracy. Position Accuracy: The main cylinder position repeatability reaches ±0.02mm, effectively controlling waste caused by machine accuracy issues.
Pressure Accuracy: The main cylinder pressure repeatability reaches ±3%, effectively controlling waste caused by machine accuracy issues.
Energy Saving: High-power motor meets the process requirements for high speed and high pressure; using a servo motor achieves the best energy-saving effect; energy saving can reach 30-50%.
Quiet Operation: The servo motor drive system meets different process requirements for speed and pressure changes, with smoother and quieter movement.
Main Cylinder Design: Made from a single forged piece and precision ground, ensuring high reliability under high pressure.
Machine Structure: The frame is made from high-quality steel plate, cut and welded as a whole, then annealed. Finite element analysis ensures minimal elastic deformation under maximum pressure. The slide block uses a four-corner eight-face guide rail design, with strong resistance to vibration and eccentric loads, ensuring stable and precise operation.
