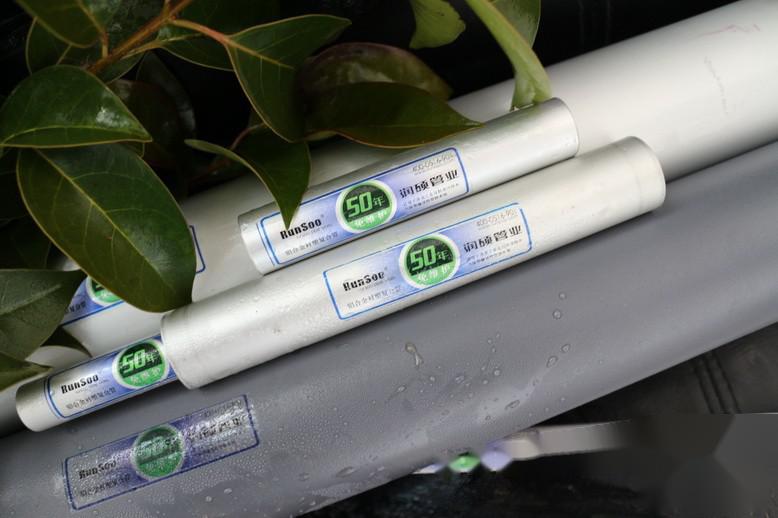

Jiangsu Runshuo Aluminum Alloy Lined Plastic Composite Pipes Characteristics Description, strictly adhering to CJ/T321-2010 standards
Raw Material Composition
1. Aluminum Alloy Lined Plastic PP-R Composite Pipe: 6063-T5 aluminum pipe; imported inner lining PP-R raw material (e.g., Daehan Oil Chemical 2400)
2. Aluminum Alloy Lined Plastic PE-RT Composite Pipe: 6063-T5 aluminum pipe; imported inner lining PE-RT raw material (e.g., DX800)
3. Aluminum Alloy Lined Plastic PB Composite Pipe: 6063-T5 aluminum pipe; imported inner lining PB raw material
4. Aluminum Alloy Lined Plastic PE Composite Pipe: 6063-T5 aluminum pipe; imported inner lining PE raw material
Detailed Features
Luxurious Appearance — The aluminum alloy lined plastic composite pipe has an aesthetically pleasing look with a metallic luster. It overcomes the shortcomings of plastic pipes deforming and bending due to thermal expansion. The weight of aluminum alloy lined plastic composite pipes is only about one-fifth that of other metal pipes, effectively reducing the load on buildings, making it suitable for main water supply and heating pipes in buildings such as residential and commercial buildings, hotels, and living communities, thereby enhancing the overall quality and grade of the buildings.
Higher Heat Resistance — Due to the protective external metal layer (aluminum layer), it eliminates elastic creep caused by heat and pressure on the inner lining, preventing plastic creep. Therefore, aluminum alloy lined plastic composite pipes can withstand higher temperatures than pure plastic pipes, resulting in a longer service life.
50 Years Maintenance-Free — The inner and outer layer materials of aluminum alloy lined plastic composite pipes are all made from domestic raw materials. Under normal usage conditions, the pipeline system remains aesthetically pleasing and sturdy, without incurring additional costs for rust and corrosion prevention. The unique inner lining layer of aluminum alloy lined plastic composite pipes forms a unit with the outer aluminum pipe after heat fusion connection, and the excellent processing of the joints avoids pipe bursting hazards and installation contamination, overcoming the phenomenon of pipeline damage due to rust in general metal pipelines.
Green and Environmentally Friendly — The inner lining materials PP-R/PE-RT/PB/PE of the aluminum alloy lined plastic composite pipes do not chemically react with ions in water or possible contacting chemicals; for example, the PP-R raw material contains only carbon and hydrogen, without other harmful elements, making it hygienic and non-toxic, corrosion-resistant and scale-resistant, classified as a green and environmentally friendly product. It can be used in pure drinking water systems, liquid beverage transport systems, liquid pharmaceutical transport systems, etc. The production, construction, and usage processes of aluminum alloy lined plastic composite pipes do not cause any environmental pollution.
Definition of Aluminum Alloy Lined Plastic Composite Pipes according to CJ/T321-2010 standards: Aluminum alloy lined plastic composite pipes are defined as a double-layer structured composite pipe with an outer layer of aluminum alloy pipe and an inner layer of thermoplastic pipe, composed through prestressed compounding; the outer aluminum pipe is a seamless aluminum pipe formed by heating and extruding 6063 deformed aluminum, followed by anodizing treatment (the anodized coating on the surface of the aluminum pipe ≥10μ).
Aluminum alloy lined plastic composite pipes have a wide range of applications. Depending on the different inner lining materials, the applications include: sand and gravel transport systems in mines and islands; water, gas, and oil transport systems in oil fields; natural gas transport systems in residential communities, etc.
Notes
1. The manufacturing and processing technology of aluminum alloy lined plastic composite pipes requires high standards from manufacturers. Users should focus on quality when selecting and be cautious of low-priced products.
2. The installation of aluminum alloy lined plastic composite pipes has high requirements. During construction, it is necessary to strictly follow the Runshuo Pipeline Technology construction manual to ensure proper construction.
3. The applications of aluminum alloy lined plastic composite pipes differ based on the inner lining materials, so users should clearly understand and consult before selection. Jiangsu Runshuo Aluminum Alloy Lined Plastic Composite Pipes: Truly ecological and environmentally friendly pipes.
The renovation of water supply systems during decoration is crucial and cannot be overlooked. Because the choice of pipe materials directly affects human health and the quality of the ecological environment, selecting the right materials for water supply renovation is very important. With the advancement of technology and the improvement of people's living standards, green pipes have become a pursuit of consumers and a direction for the future development of the pipe market. Among many national brands, Jiangsu Runshuo Pipeline, representing a new generation of green and environmentally friendly pipeline enterprises, is developing and growing.
In recent years, the development of aluminum alloy lined plastic composite pipes has been rapid. These pipes are increasingly favored in both domestic and industrial applications due to their energy-saving and material-saving features, ecological protection, improvement of living environments, enhancement of building functionality and quality, reduced building weight, and ease of completion. They play an irreplaceable role in municipal pipeline projects, civil engineering, and home decoration. With the enhancement of China’s overall national strength and the improvement of living standards, aluminum alloy lined plastic composite pipes have made rapid progress.
Let’s take a look at the advantages of Runshuo Aluminum Alloy Lined Plastic Composite Pipes:
1. Pressure Resistant, Aging Resistant — Aluminum alloy lined plastic pipes not only have a gorgeous appearance but are also effective in resisting ultraviolet radiation from sunlight. Their aging resistance enhances the service life of the pipes, making them particularly suitable for exposed installations.
2. Excellent Oxygen Barrier Performance — Plastic itself is a non-gas-tight material, allowing oxygen to easily permeate into the water through plastic pipes. Aluminum alloy lined plastic pipes effectively isolate oxygen penetration, overcoming the disadvantages of single plastic pipes that can lead to the growth of microorganisms and algae.
3. Convenient Installation — Weighing only 1/6 of galvanized pipes, they are lightweight for easy handling. The heat fusion connection does not require threading, making operations easy to master and control, resulting in more convenient and faster installation. Heat fusion connections will not leak due to poor fusion causing cracks or shrinkage holes, achieving maintenance-free pipeline systems.
4. Stable Flow — The inner surface is smooth and not prone to scaling, resulting in low transport resistance and stable flow.
5. Insulation and Energy Saving — Low thermal conductivity, providing good insulation and energy-saving effects.
6. Applicable Scope — Suitable for hot and cold water supply, natural gas pipelines, air conditioning pipes.
7. Technical Parameters — Working temperature: -20 to 95°C.
Raw Material Composition of Aluminum Alloy Lined Plastic Composite Pipes
1. Aluminum Alloy Lined Plastic PP-R Composite Pipe: 6063-T5 aluminum pipe; imported inner lining PP-R raw material (e.g., Daehan Oil Chemical 2400)
2. Aluminum Alloy Lined Plastic PE-RT Composite Pipe: 6063-T5 aluminum pipe; imported inner lining PE-RT raw material (e.g., DX800)
3. Aluminum Alloy Lined Plastic PB Composite Pipe: 6063-T5 aluminum pipe; imported inner lining PB raw material
4. Aluminum Alloy Lined Plastic PE Composite Pipe: 6063-T5 aluminum pipe; imported inner lining PE raw material
Application Scope of Aluminum Alloy Lined Plastic Composite Pipes
Various building hot and cold water supply pipe systems, high-rise buildings, hotels, hospitals, schools...
Applicable for heating and large central air conditioning supply and return water pipe systems in northern buildings.
Applicable for various food enterprises, drinking water, beverage bottling lines, and pharmaceutical pipeline systems.
