Product Description:
1. Advanced polyurethane (UV curing) technology
2. The bottom features a special grip design for rubber stage performance cable trench boards, allowing installation without damaging the ground
3. High insulation level with breakdown voltage 7500v and load-bearing capacity of 65 tons

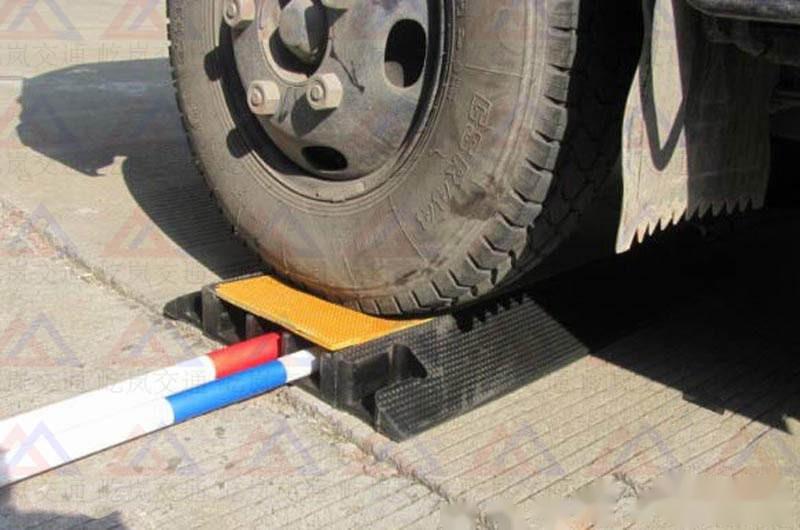

4. High compressive load capacity, suitable for heavy trucks, forklifts, power generation vehicles, broadcasting vehicles, and container trucks
5. Durable, proprietary Durathane polyurethane molded construction
Shanghai Yilan Transportation Facilities Co., Ltd. has developed rubber cable trench boards, which have been inspected by the National Technical Supervision Bureau and issued a test report certificate, ensuring safety and high quality for customers using rubber stage performance cable crossing boards! Additionally, the bottom's strong adhesive design allows for arbitrary placement and installation without bolts, preventing damage to the ground or the use of tools, and effectively protects the safety of cable usage.
Our company has currently developed a series of trench products:
A Class Straight Boards:
Medium Double Trench Specifications: 1000*450*70mm Trench Diameter: 50*50mm Weight: 13 kg
Double Trench Specifications: 800*300*45mm Trench Diameter: 30*25mm Weight: 7 kg
Medium Double Trench Specifications: 800*430*65mm Trench Diameter: 50*50mm Weight: 12.5 kg
Large Double Trench Specifications: 660*580*105mm Trench Diameter: 90*90mm Weight: 19 kg
Triple Trench Specifications: 1000*345*50mm Trench Diameter: 30*30mm Weight: 12 kg
Triple Trench Specifications: 800*430*50mm Trench Diameter: 30*30mm Weight: 12 kg
Large Triple Trench Specifications: 800*520*85mm Trench Diameter: 65*65mm Weight: 14.5 kg
Quadruple Trench Specifications: 800*500*65mm Trench Diameter: 50*50mm Weight: 16.5 kg
Quintuple Trench Specifications: 800*500*50mm Trench Diameter: 30*30mm Weight: 12.5 kg
Changsha Cable Protection Trench 2-Hole Corner Cable Protection Trench
A Class all straight boards can be configured with 90° corners and three-way corners.
B Class Straight Boards:
3 Wire Trench 1000mm*310mm*55mm (3 Wire Trench) Hole Diameter: 35x35mm
3 Wire Trench 900mm*500mm*75mm (3 Wire Trench) Hole Diameter: 55x65mm
4 Wire Trench 770mm*485mm*65mm (4 Wire Trench) Hole Diameter: 40x40mm
5 Wire Trench 900mm*500mm*50mm (5 Wire Trench) Hole Diameter: 32x35mm
2 Wire Trench 900mm*620mm*100mm (2 Wire Trench) Hole Diameter: 80x90mm
C Class Straight Boards:
Small Double Trench Specifications: 1000*250*50mm Trench Diameter: 32*35mm Weight: 7 kg
Triple Wire Trench Specifications: 1000*300*50mm Trench Diameter: 35*32mm Weight: 9 kg
Large Double Trench Specifications: 900*580*90mm Trench Diameter: 80*95mm Weight: 22 kg
Triple Wire Trench Specifications: 900*500*85mm Trench Diameter: 70*65mm Weight: 15 kg
Quadruple Wire Trench Specifications: 900*500*60mm Trench Diameter: 40*45mm Weight: 15 kg
Quintuple Wire Trench Specifications: 900*500*50mm Trench Diameter: 30*40mm Weight: 14 kg
Medium Single Trench Specifications: 1000*260*70mm Trench Diameter: 50*70mm Weight: 8.5 kg
Large Single Trench Specifications: 1000*580*120mm Trench Diameter: 125*100mm Weight: 22 kg
Company Statement: Any defective cable trench boards will not leave the factory, with strict quality control.
Changsha Cable Protection Trench 2-Hole Corner Cable Protection Trench
