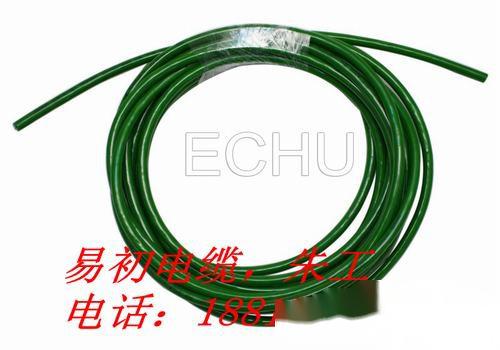

Special Cable for Drag Chains, Flexible Drag Chain Cable TRVV
Product Summary:
Bend-resistant drag chain cable, easy-start drag chain cable - EasyStart wires and cables
Product Description
Cable Structure:
Conductor: Multi-strand ultra-fine twisted oxygen-free copper wire, compliant with VDE0295 CLASS 6 standards
Insulation: Special mixed PVC insulation
Color: For wires ≤ 0.5mm, colors include brown, black, blue, purple, pink, orange
For wires ≥ 0.5mm, black with white numbering; for cables with 3 cores or more, includes yellow-green grounding wire (yellow-green optional)
Inner Sheath: Low viscosity high-strength extruded inner sheath, PUR material, oil-resistant
Shielding: Tinned copper mesh braid shielding, density over 80%
Outer Sheath: Special modified PUR outer sheath
Colors: Orange (RAL2003), Black (RAL9005), or Gray (RAL7001)
Rated Voltage: For wires ≥ 0.5mm: 300/500V; for wires < 0.5mm: 300/300V
Test Voltage: 2000V
Operating Temperature Range: Fixed installation: -50°C to +90°C
Mobile installation: -30°C to +90°C
Minimum Bend Radius: Fixed installation: 5 times the outer diameter of the cable;
Mobile installation: When the travel is less than 10 meters, the bend radius is 8 times the outer diameter of the cable
When the travel is greater than 10 meters, the bend radius is 10 times the outer diameter of the cable
Product Features:
Waterproof, oil-resistant, UV-resistant, abrasion-resistant, flame-retardant, bend life over 5 million cycles, suitable for rapid movement environments
Application Range:
Suitable for indoor use in dry or humid conditions, installed under free continuous reciprocating motion without strong stress relief or forced guidance, especially in frequently bending situations in industrial environments, such as woodworking machinery, machine tool processing equipment, logistics conveying systems, lifting sites, etc. Good electromagnetic shielding against interference for long travel applications
Note: The drag chain cable product isEasyStart cable patented product and won the top 10 brands in 2010. All products are insured by China Ping An Insurance Company
