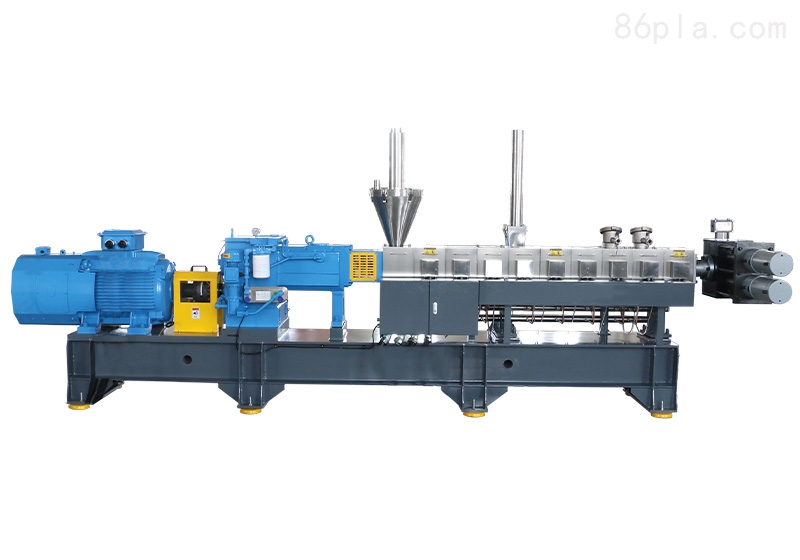

Brief Description:Black masterbatch pelletizing machine is mainly used for coloring polymer materials, and it is primarily divided into black masterbatch, white masterbatch, color masterbatch, and liquid color masterbatch.
Characteristics of Black Masterbatch Pelletizing Machine:
1. To ensure that pigments have better dispersibility in the products, the pigments must be refined during the color masterbatch production process to improve their dispersibility and tinting strength. The carrier of the color masterbatch is the same type of plastic as that of the final product, ensuring good compatibility. After heating and melting, the pigment particles can be well dispersed in the plastic of the product.
2. It is beneficial for maintaining the chemical stability of pigments. When using pigments directly, they come into direct contact with air during storage and usage, leading to phenomena such as moisture absorption and oxidation. However, when made into color masterbatches, the resin carrier isolates the pigments from air and moisture, ensuring the quality of the pigments remains unchanged over a long period.
3. Ensuring the stability of the product color: The color masterbatch pellets are similar in size to the resin pellets, making them easier and more accurate to measure. They do not adhere to the container during mixing, and they blend more uniformly with the resin. This ensures a stable addition amount, thereby guaranteeing the stability of the product color.
4. Protect the health of operators Pigments are usually in powder form, and they can easily become airborne during addition and mixing, which can be inhaled by the human body and affect the health of the operators.
5. Maintain a clean environment.
6. Easy to use.
Black masterbatch pelletizer operation:
1. Start the feeder. Fill the feeding hopper with material before starting the main motor control system. Then, turn the speed control knob of the black masterbatch granulator clockwise (note that the knob should be turned counterclockwise to zero position before starting the main unit). Slowly increase the screw speed; the idle rotation speed of the screw should not exceed 20 r/min and should last for less than 2 minutes. After confirming that the machine is operating normally and the no-load current is normal, slowly start the feeding device. Once material is discharged from the head of the black masterbatch granulator, gradually and slowly increase the screw speed and the twin-screw feeder speed. Increase the speed only after the current has stabilized. Adjust the pelletizing speed in a timely manner to ensure the produced particles meet the requirements. During the speed adjustment process, closely monitor the main unit's current indicator, and it is advisable to keep the main unit's current below 80% of its rated value. At the same time, pay attention to the operation of all parts of the unit, such as noise, vibration, bearing temperature rise, heating temperature, and main unit current, which must be within the normal range. If any abnormal sound is detected, stop the machine immediately for handling.
2, Soft water cooling circulation system. Each section of the barrel cooling circuit is equipped with a manual throttle valve and a solenoid valve; the former controls the flow of soft water, while the latter automatically controls the on/off of the soft water in conjunction with the temperature control instrument of the black masterbatch pelletizer. The feeding section of the barrel is only equipped with a manual throttle valve. For materials that do not tend to accumulate unmelted at the feed opening, this section's cooling can also be left off. During the start-up phase, the soft water circulation system does not need to be used. Once the main unit operates smoothly, if the measured temperature of a certain section of the barrel is significantly higher than the set temperature, then the pump of the soft water system can be started, adjusting the bypass overflow valve at the pump outlet to control the outlet pressure between 0.2-0.3MPa. Then, slightly open the throttle valve of the section that needs cooling (do not suddenly fully open it), and wait for several minutes to observe the temperature change of that section. If there is no significant downward trend or it decreases to a new equilibrium temperature but exceeds the allowable value, the valve of the black masterbatch pelletizer's circuit can be adjusted appropriately. This process often requires some repetition to meet the requirements. Once the valve opening adjustment is determined, no further adjustment is generally needed for the same material. The water temperature in the soft water tank is controlled by regulating the cooler of the tank.
3. After the trial run, revert to 50%-80% load for a 48-hour trial production to allow all moving parts to be 'run-in' before normal production begins.
