Product Information
Product Number: Aluminum Alloy Lined Plastic Composite Pipe
Standards: CJ/T 321-2010
Product Specifications: dn20-dn160
Product Grade: First Class
Product Application: Water Supply, Heating
Surface Treatment: Anodizing
Theoretical Weight: 1.5 kg/m
Reference for Aluminum Alloy Outer Pipe Peel Length:
Nominal Outer Diameter (mm) 20 25 32 40 50 63 75 90 110 160
Peel Length (mm) 13 15 17 19 20 25 28 32 38 55

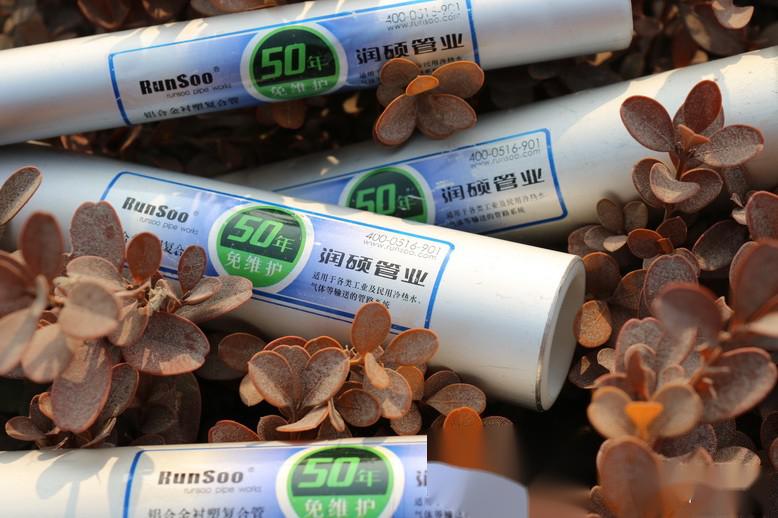

Aluminum Alloy Lined Plastic Composite Pipe Product Real Shot
RunSoo aluminum alloy lined plastic composite pipe is a new type of practical pipeline developed based on traditional plastic pipes. It combines the physical and chemical advantages of both metal and plastic materials, ensuring superior sanitary performance and pressure resistance, while also featuring frost resistance, thermal insulation, noise reduction, corrosion resistance, shock resistance (impact resistance), light blocking, oxygen permeability prevention, lightweight rigidity, seamless connections without using any adhesives, polished surfaces, and various surface treatment processes. RunSoo's patented design allows for customized colors according to needs, providing multiple installation supports, and the product has a more user-friendly design, complete model specifications, and quality meeting national standards certification. It offers a maintenance-free period of fifty years and more significant features. There are more design and construction options available. It is healthy and environmentally friendly, non-toxic and antibacterial, structurally strong, and has powerful functions, widely applicable, provides multiple installation supports, and the pipe ends are marked with scales and functional identification marks, making it easier and faster to distinguish between different pressures, wall thicknesses, and uses. It also has a national patent number. Complete model range from dn20mm to dn160mm
RunSoo's testing center implements four categories of product quality inspections, totaling 18 procedures, covering raw material inspection (IQC), production process inspection (PQC), performance inspection (FQC), and outgoing inspection (OQC). This includes incoming material analysis, production initial inspection, process patrol inspection, finished product technical inspection, packaging sampling inspection, storage re-inspection, and outgoing self-inspection, etc. Each stage ensures that every meter of pipe and every fitting meets the title of "Outstanding Model." The prerequisite for achieving this goal is a strict QC responsibility system and various inspection equipment.
These instruments represent the domestic pipeline testing technological means and are a strong guarantee for guiding enterprises' products towards standardization. RunSoo's confidence is built on its innovative product capabilities and its ability to transform innovations into inspection capabilities! Striving for a product qualification rate of over 98% is the pursuit of all QC personnel at RunSoo!
Therefore, there is only progress and no stopping!
Scope of Application
Mainly applicable for cold and hot water supply in buildings, including industrial and civil cold and hot water and heating systems.
Product Advantages
a) Excellent Mechanical Properties: The aluminum alloy lined plastic composite pipe is a lightweight rigid pipe that will not suffer loss or damage due to accidental impacts, strikes, or compressions during installation and use.
b) Thermal Conductivity: The thermal conductivity of the inner layer of polypropylene in the aluminum alloy lined plastic composite pipe is 0.24w/mk, maintaining a constant between 20℃ and 60℃. The pipes produced using it have excellent thermal insulation properties.
c) Economy: The melt flow rate of the inner layer of polypropylene in the aluminum alloy lined plastic composite pipe varies very little, with the melt index variation rate of the same product model generally <6%. Even after multiple heat plasticizations, it can still maintain its original excellent performance, greatly improving the repetition utilization rate of the raw materials and reducing the production costs of the pipes.
d) Long-term Static Pressure Resistance: Long-term static pressure resistance directly affects the service life of water supply pipes. The aluminum alloy lined plastic composite pipe has better hydraulic resistance than similar pipes after hydraulic testing, and the combination of polypropylene pipes and fittings has good long-term static pressure resistance and an ultra-long service life.
e) Excellent Weldability: The thermal fusion connections of the pipes will not produce cracks or shrinkage holes due to poor thermal fusion, thus achieving maintenance-free pipeline systems, which is a typical performance of polypropylene pipes.
Product Standards and Specifications
Product Execution Standards: CJ/T 321-2010
RunSoo brand aluminum alloy lined plastic (lined with PP-R, PE-RT, PE, PB) composite pipe performance:
1. Healthy and Environmentally Friendly, Non-toxic and Antibacterial
Made from food-safe level water-related raw materials, resistant to chemical pollution, and reduces noise during the transportation process;
Thermal insulation, with heat loss along the way being only 1/200 of that of metal pipes, smooth transportation, less prone to scaling, and a friction resistance coefficient of only 0.007.
2. Firm Structure
Lightweight rigid pipes that are level and vertical, not easily damaged, with full-length thermal fusion socket connections, eliminating leakage risks, unique fitting designs that prevent spillage exposure;
Resistant to low temperatures, corrosion, oxygen, and electrochemical corrosion, the system can run maintenance-free for over 50 years and withstand a nominal pressure of PN2.5Mpa.
3. Powerful Functionality, Widely Applicable
Building cold and hot water supply pipeline systems;
Indoor heating and central air conditioning pipeline systems in buildings;
Various food hygiene, drinking water, and pharmaceutical preparation pipeline systems;
Various chemical preparation and hospital medication delivery pipeline systems.
Aluminum Alloy Lined Plastic Composite Pipe Product Image
Material Properties
Aluminum alloy lined plastic (PE) composite pipe is a newly developed oxygen-permeation-resistant indoor gas pipeline by Jiangsu RunSoo Pipe Industry Co., Ltd. The outer layer uses 6063 aluminum alloy pipe, and the inner lining is made from PE100 polyethylene specialized for gas. This gives the entire pipe a metallic feel and good rigidity while enhancing the pipeline system's UV resistance and providing excellent leak-proof characteristics, good toughness, wear resistance, low-temperature resistance, corrosion resistance, and excellent environmental adaptability, effectively solving the problem of plastic pipes not being suitable for outdoor gas entry pipes.
Connection Method
Hot melt socket connection, saving time and effort.
Scope of Application
Gas entry pipes, indoor pipes.
Oxygen Barrier Effect: The aluminum alloy outer layer of the PE pipe prevents oxygen infiltration, making it currently the only PE pipe in the national market that achieves no oxygen permeation.
Long Lifespan: The aluminum alloy outer layer effectively prevents UV damage to the PE pipe, extending its lifespan to ensure at least 50 years of use.
Good Impact Resistance: Will not suffer loss or damage due to accidental impacts, strikes, or compressions during use.
Creep Crack Resistance: The pipe can be used long-term under 0.6Mpa and 110℃ conditions.
Gorgeous Appearance: The aluminum alloy outer layer ensures colorfastness and maintains a beautiful appearance.
Quick Operation: The gas hot melt connection aluminum alloy lined plastic (PE) pipeline uses hot melt connections between pipes and fittings, allowing for quick and convenient installation, good tightness of the pipeline system, and high safety performance. The appearance is beautiful, and the cost performance is excellent.
