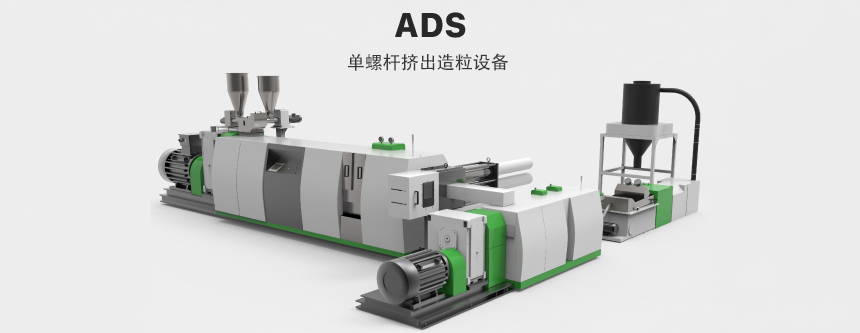

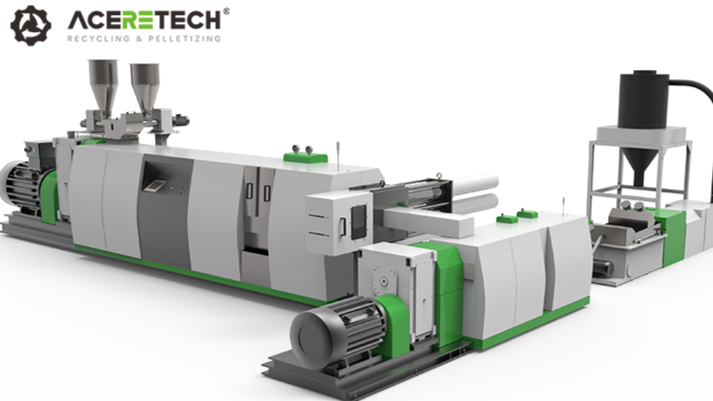

ADS Two-Stage Single-Screw Rigid Plastic Extrusion Pelletizing Equipment
The ADS series single-screw extrusion pelletizing system is a professional and reliable system designed for recycling and re-pelletizing rigid plastic waste. It is an efficient, continuous system capable of processing various types of rigid plastics such as PP, PE, ABS, PS, PVB, and PA in the form of flakes, recycled material, or crushed plastic into pellets through processes including melting, plasticizing, vacuum degassing, and filtration.

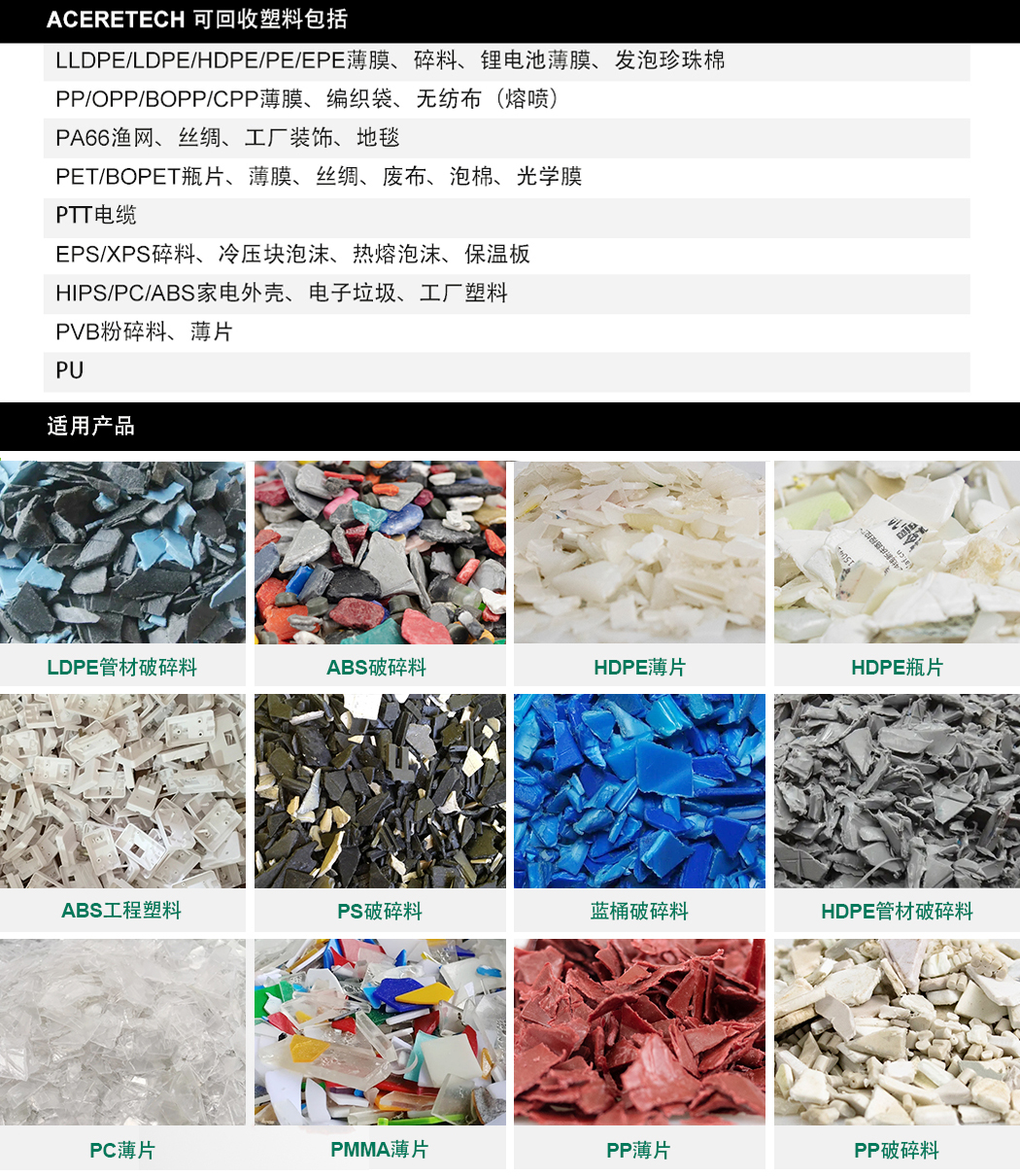

【Materials That Can Be Processed】

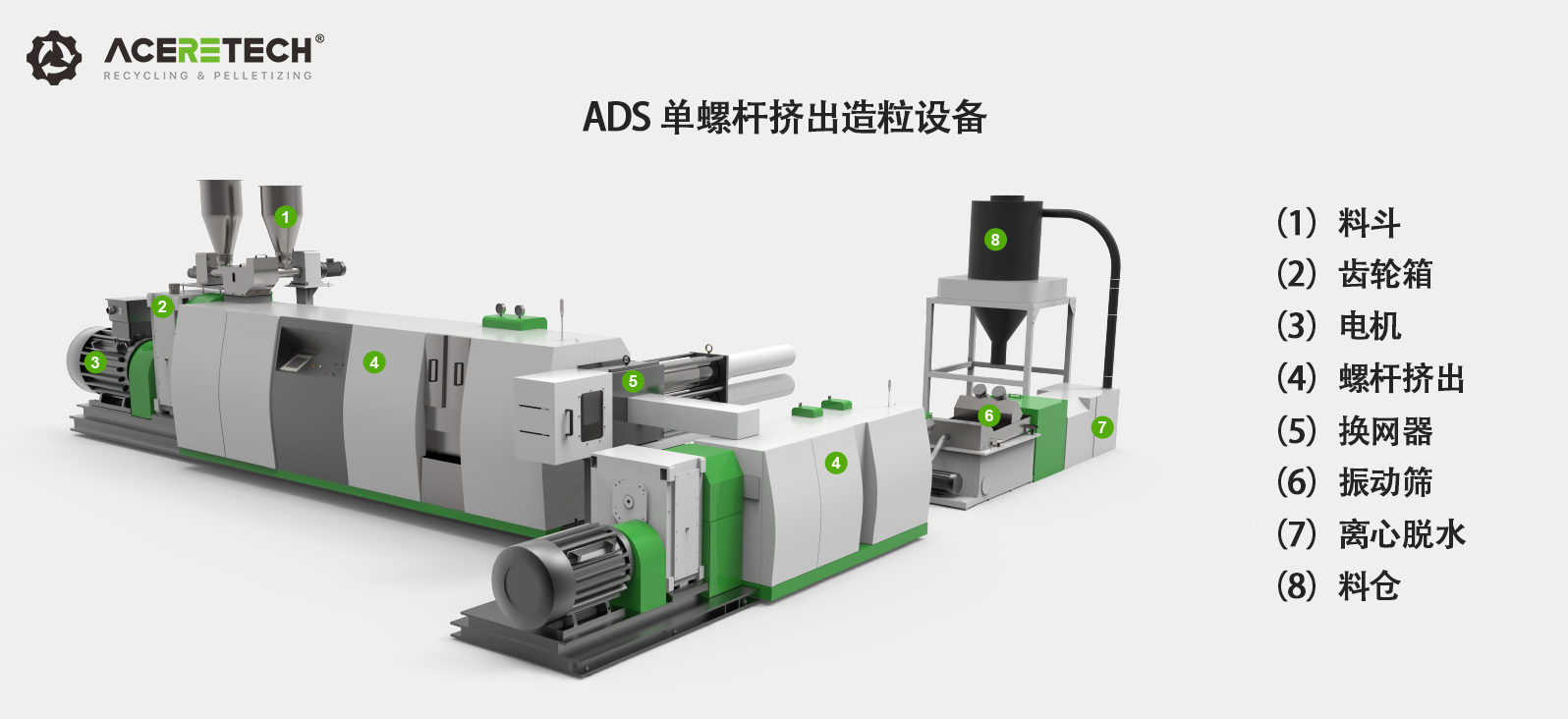

【Production Process】

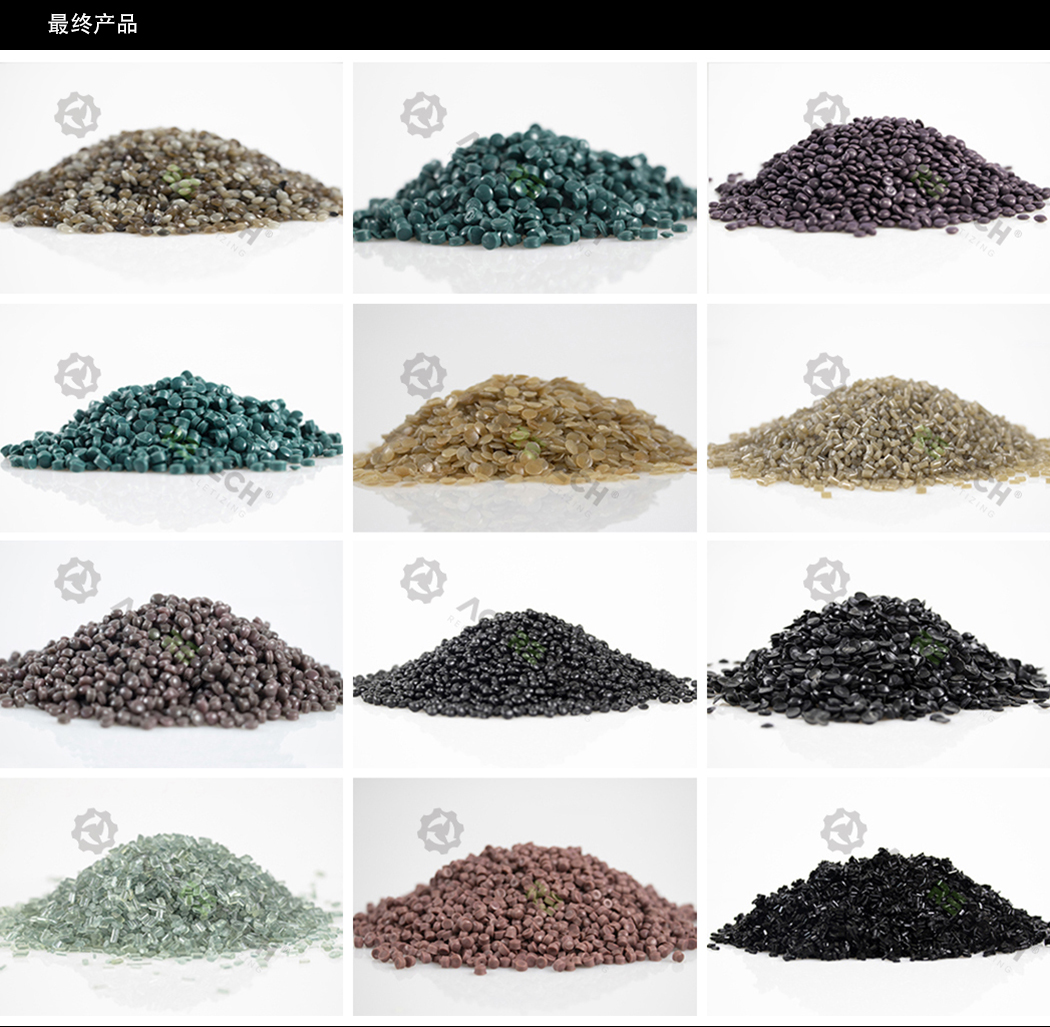

【Final Pellets】
【Machine Specifications】
Model | Screw Diameter (mm) | L/D Ratio | Power (kw) | Output (kg/h) |
ADS100/120 | 100 | 32 | 110 | 260-350 |
120 | 10 | 30 | ||
ADS120/150 | 120 | 32 | 132 | 330-420 |
150 | 10 | 37 | ||
ADS150/180 | 150 | 32 | 185/200 | 550-650 |
180 | 10 | 45 | ||
ADS180/200 | 180 | 32 | 250/315 | 800-1000 |
200 | 10 | 55 |

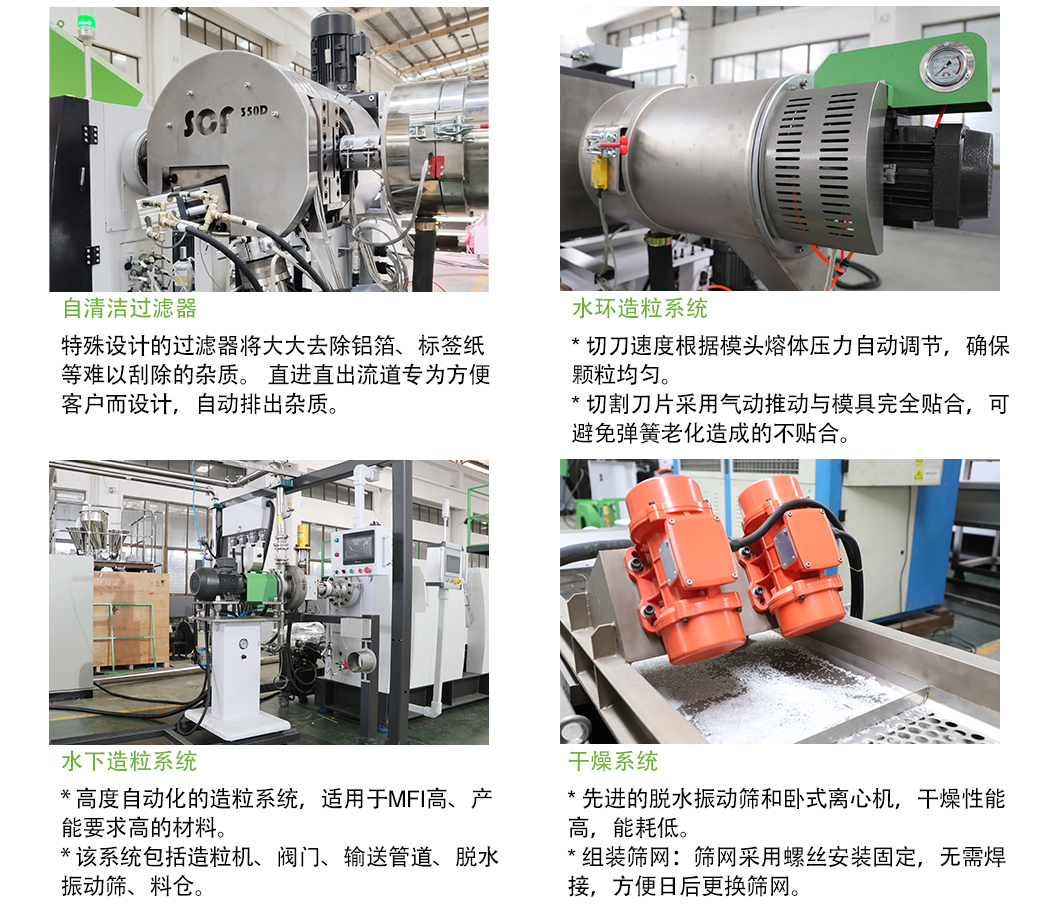

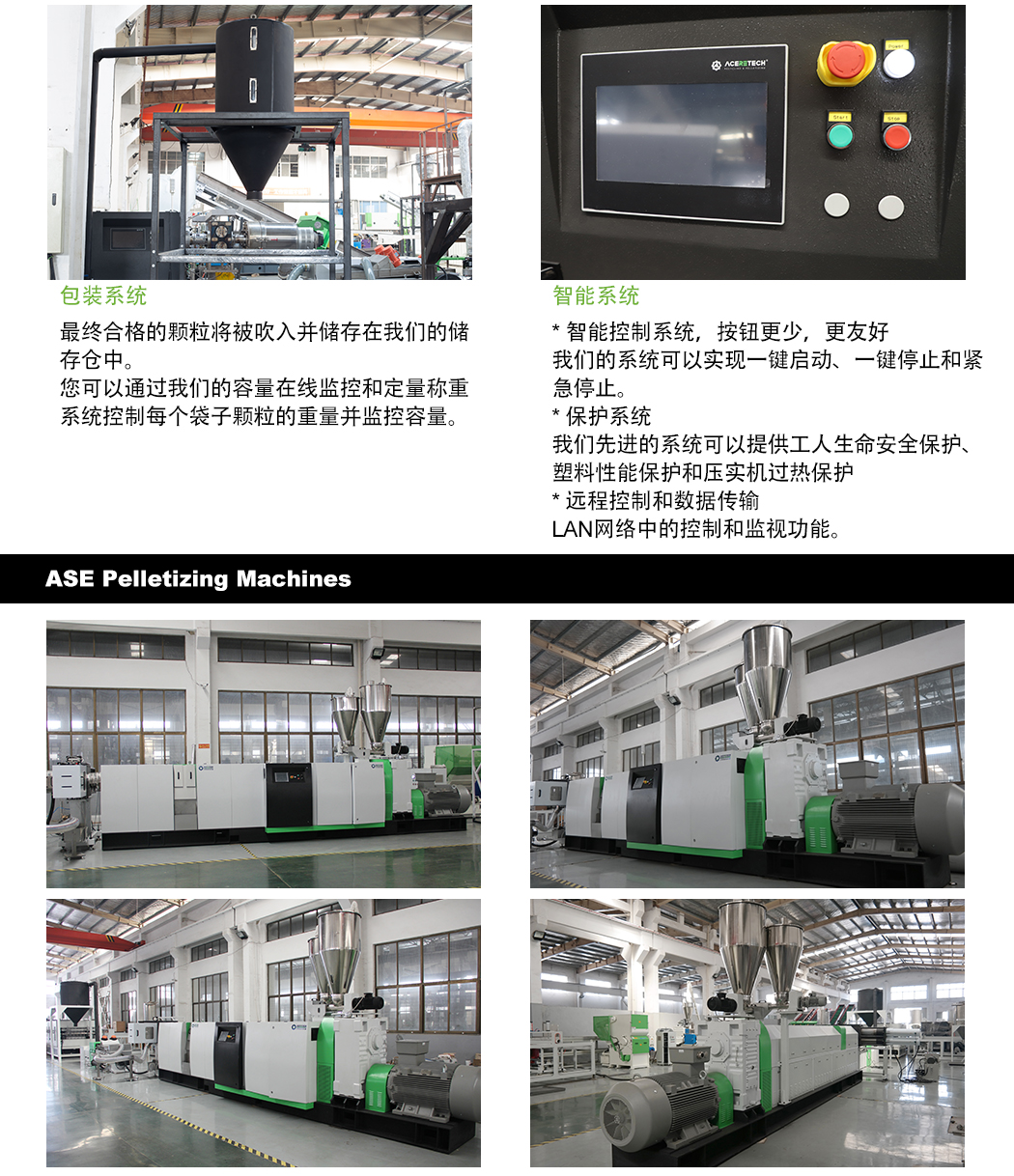

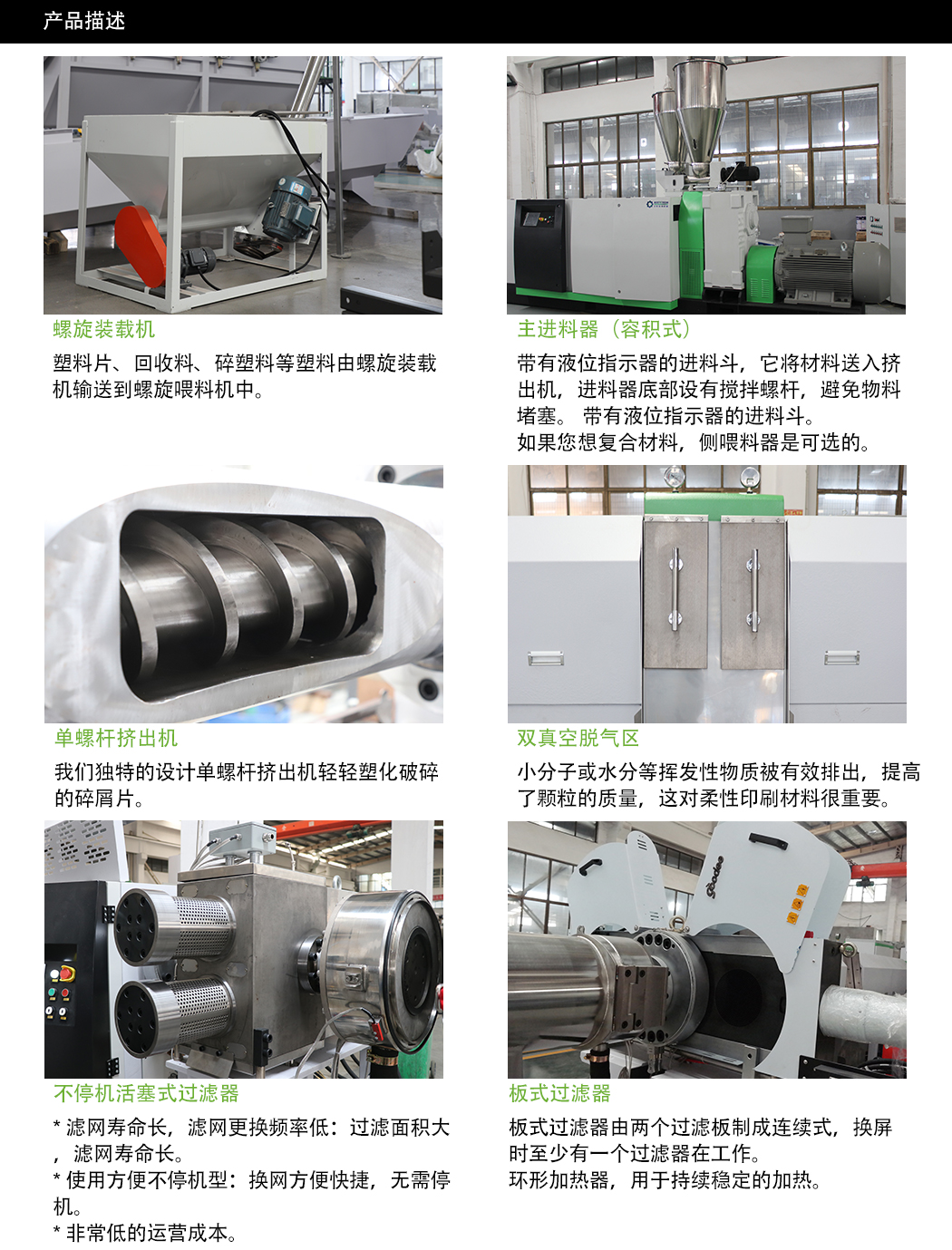

【Product Detail Description】
