20-ton Water Reducer Storage Tank, 20-ton Admixture Storage Tank, 20-ton Mother Liquid Storage Tank Manufacturer Wholesale

Other Products-Other Products
Expand

Product Content

Category
Other Products-Other Products



1. Product Performance

1. The plastic water tower is formed using rotational molding technology.

2. The material of the plastic storage tank produced by the company is imported rotational molding special material—Linear Low-Density Polyethylene (LLDPE) or Linear Medium-Density Polyethylene (LMDPE). It can hold most inorganic acids, bases, salts, and many organic substances at room temperature.

3. Accessories are configured according to the purposes provided by the customer, including PP, PVC, and ABS joints, and PP, PVC, and PE flanges are available for selection. When storing acidic or alkaline substances, PVC, PP, or PE accessories and acid-resistant gaskets should be configured. When storing organic substances (especially organic solvents), non-soluble rubber gaskets should be configured.

4. The softening point of the used plastic is 108°C, and the fracture point is -70°C, so it can generally be used to hold liquids at temperatures from -40°C to 70°C. If the temperature of the liquid being stored exceeds 70°C, a metal reinforcing sleeve should be configured to prevent the storage tank from softening and deforming. If the storage tank is used for chemical reactions or dilution, relevant tests should be conducted in advance to determine the reaction or dilution temperature.

5. This product is not suitable for storing strong oxidizers and good organic solvents.

6. Other products include: PE food round barrels, food square barrels, biogas pool barrels, turnover boxes, and other plastic container products. The product comes with 2 fittings of size 50 and below, and free installation of fittings. Products can be customized for openings and processing according to customer requirements.7. The company specializes in the production of various large and super-large plastic containers with complete processes and one-time molding. The products include PE storage tanks, chemical storage tanks, mixing barrels, transportation tanks, round barrels, square boxes, and PE special-shaped processing services.


2. Installation and Usage Instructions
1
. The foundation for installing the storage tank must be level and able to bear the corresponding pressure. If using a steel structure, the gap should not be too large, and wood or iron plates should be laid on top.
2
. When the storage tank is used for storing chemical substances, there should be good drainage ditches and dilution devices around the site.
3
. Since the bottom of the tank inevitably bulges inward during molding, the foundation should be shaped similarly to the bottom's spherical shape (it is recommended to use sand to form a spherical shape corresponding to the bottom of the storage tank on a level foundation).
4
. Pay attention to safety during the installation of large specification storage tanks; it is advisable to use cranes. If unsure of the method, please contact us.
5
. The plastic joints are tightened during production, but they may loosen during transport and handling. Therefore, before use, the sealing performance of the joints should be checked, and liquid can be added to observe for leaks at the joint. For storage tanks holding chemical liquids, conduct a water leak test to prevent significant losses.
6
. The pipes connected to the lower joints or flanges of the storage tank should be vertical to the tank wall, preferably using flexible connections to avoid damage to the joints due to uneven expansion of the tank wall after being filled with liquid, which could lead to leaks and, in severe cases, damage the joints and the tank body.
7
. If the inlet is higher above the tank bottom, the inlet should be bent towards the tank wall to allow the incoming liquid to flow down along the tank wall, reducing the impact on the bottom.
8
. For large capacity storage tanks (above 20 cubic meters), a metal reinforcing sleeve can be used to limit the expansion deformation of the tank at the joint, thus avoiding cracking at the holes.
9
. When installing heavy auxiliary equipment such as mixers on the tank or when personnel need to work on the tank top, and the tank top cannot bear the weight, please make a separate frame or ladder and pay attention to safety during operation.
10
. In cases where the liquid level cannot be controlled, an overflow port should be installed to prevent liquid from overflowing from the manhole, causing unnecessary harm.
11
. If the inflow and outflow rates are large, corresponding exhaust pipes should be installed.
12
. Please contact our company again when changing the stored liquid.

3. Main Products

Nanning Tianyi's main products include:PE storage tanks, plastic storage tanks, chemical storage tanks, anti-corrosion storage tanks, plastic water towers, cone-bottom barrels, plastic round barrels, plastic square boxes, dosing boxes, floating boxes, anti-collision barrels, water horses, acid washing tank processing, steel-lined plastic products, plastic containers, plastic special-shaped welding, transportation tank welding, fiberglass waste gas treatment equipment, and fiberglass large containers, as well as various special-shaped processing services.

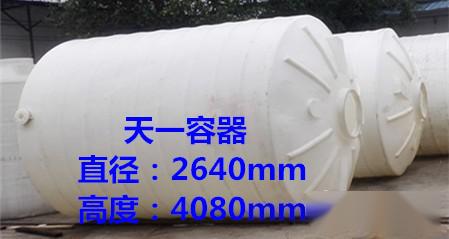

3. Company Product Photos




Product Consultation
Supplier
Nanning Tianyi Plastic Products Co., Ltd.
location
China GuangxiZhuangAutonomousRegion
About Us
Nanning Tianyi Plastic Products Co., Ltd. is located in Yiling Industrial Park, Wuming District, Nanning City, close to Nanwu Avenue and 2 kilometers away from the Yilingyan exit of G75 National Highway. The company has a self-built factory covering 2,000 square meters. With over ten years of focus on the plastic rotational molding industry, it is an enterprise integrating scientific research, production, and sales. All products adopt international advanced technology and use imported raw materials, specializing in the production of integral rotational molded products and fiberglass products. The company has invested heavily in introducing multiple PE rotational molding machines and computer-automated control FRP winding equipment that represent international advanced levels. It has branches in Guangzhou, Changsha, Kunming, and other places. The main business involves integrated sewage treatment equipment, dosing equipment, PE storage tank manufacturing, pickling tank processing, and anti-corrosion project contracting in the environmental protection field. Major products include: PE storage tanks, plastic storage tanks, chemical storage tanks, anti-corrosion storage tanks, plastic water towers, conical bottom barrels, plastic round drums, plastic boxes, dosing boxes, floating boxes, collision prevention barrels, water horses, pickling tank processing, steel-plastic composite products, plastic containers, PP board welding, transportation tank welding, fiberglass exhaust gas treatment equipment, and large fiberglass containers. The company also undertakes the processing of various custom-shaped parts. All products are made from imported linear low-density polyethylene (LLDPE), featuring resistance to high and low temperatures without deformation, excellent corrosion resistance, sturdiness, and durability. They are the top choice for industries such as environmental protection, chemicals, sewage treatment, electronics, medicine, printing and dyeing, hardware, and food. The company always adheres to the principle of technological innovation and service to environmental protection, insists on people-oriented development, uses technology as the driving force, strict quality management as the lifeline of the enterprise, and operates with first-class service and integrity. We will make every effort to satisfy you. New and old customers are welcome to contact us by phone or letter, and visit us for guidance.
